Start To The Good Quality Tea Bag Packing Machine Catalog

These are the tea bag packing machines

Tea Bag Packaging Machine with inner filter and outer sachet​

CB-169TNW Tea Bag Packing Machine

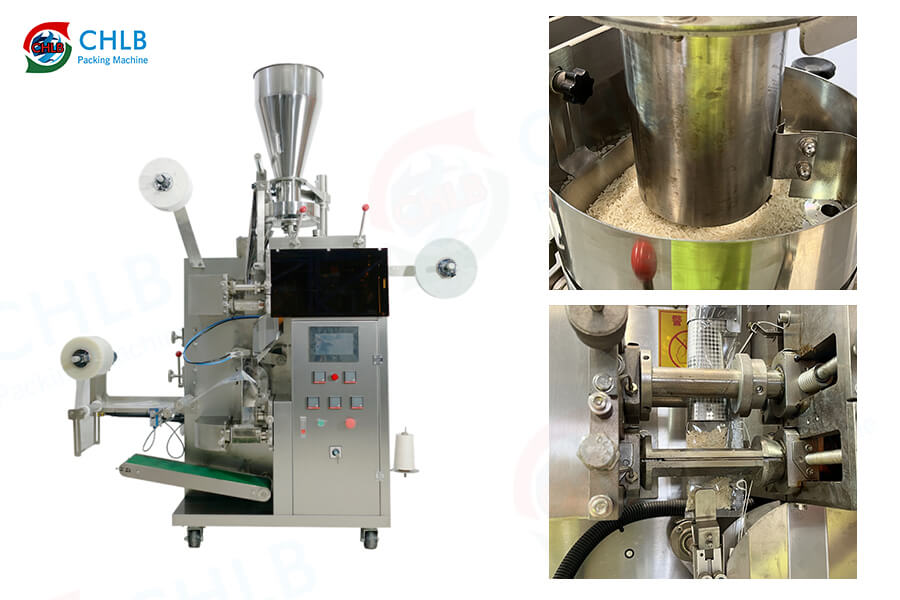

This is a tea bag packing machine with inner and outer bag suitable for small granule tea
Granule type tea bag packaging machine
This is a tea bag packing machine with inner and outer bag suitable for powder
Powder type tea bag packaging machine

Application

This packaging machine is designed for tea packaging, suitable for various types such as loose tea, herbal tea, health tea, flower tea, tea powder, traditional Chinese medicine powder, and others, all of which are single-use packaging both for inner and outer bags.

The NW-169T machine primarily operates by filling the tea leaves into the feeding drum, followed by bag-making and filling. It first prepares the inner bag for tea packaging, and after completing the inner bag packaging, it proceeds to package the outer bag. This machine is the preferred choice for customers with limited factory space and not high-speed requirements in tea packaging.

Advantage of CB-169TNW Tea Bag Packaging Machine

  1. Stainless Steel Construction Conforming to GMP Standards:

    All stainless steel components meet GMP (Good Manufacturing Practices) standards, ensuring hygiene and quality in the packaging process.

  2. Anti-Pollution and Dustproof Features:

    Equipped with anti-pollution and dustproof mechanisms, this machine maintains a clean and contamination-free packaging environment.

  3. Adjustable Measuring Cup:

    The machine features an adjustable measuring cup that allows for minor adjustments to the filling weight even when the machine is not in operation.

  4. Special Seal Design:

    The sealing mechanism is designed with a unique flower-like pattern, ensuring excellent seal quality and effectiveness.

  5. Automatic Counting Function for Precise Packaging:

    It comes with an automatic counting function, enabling precise and quantified packaging of products.

Three or Four Side Seal Pouch

Technical Parameter

Model:CB-169TNW
Filling Range:3 – 10g
Packaging Speed:30-40bags/minute
Inner Bag Sizes:L:50-80mm;W:45-80mm
Outer Bag Sizes:L:80-120mm;W75-95mm
Machine Size:1750x740x1950mm
Machine Net Weight:300KG
Machine Power:220V,50/60HZ,2.2KW


Pyramid Tea Bag Packaging Machine With Inner Filter and Out Bag

this is a pyramid tea bag packing machine with sachet
CB-02NWSJB
this is a all in one pyramid tea bag packing machine with sachet
CB-06NWSJB

Application

This is a tea bag packaging machine designed specifically for packaging various types of teas, including loose leaf tea, herbal tea, health tea, and floral tea. This machine is perfect for factories seeking efficient and convenient single-use packaging solutions.

The CB-02-06NWSJB can be equipped with 2 to 6 weighing heads, ensuring precise measurements for your tea products. The packaging process is streamlined and user-friendly: start by pouring your tea leaves into the hopper, and the machine takes care of the rest. It begins by filling and sealing the inner tea bag, followed by the outer bag, creating a secure and attractive triangular tea bag package.

What sets this machine apart is its suitability for smaller factory spaces and its flexibility to meet the needs of customers with moderate packaging speed requirements. It’s the ideal choice for those looking to efficiently package a variety of teas while maintaining product quality and presentation.

Advantage of CB-02-06NWSJB Triangle Tea Bag Packing Machine

  1. Cutting-Edge Design and Enhanced Technology

    This machine boasts a brand-new design with a striking appearance and a more logically structured framework. Its technology is at the forefront of the industry.

  2. Multilingual Screen Display

    Users have the option to choose between English or other language displays on the screen. This feature enhances usability and accommodates diverse operators.

  3. User-Friendly Operation

    With its one-touch packaging speed and length settings, operating this machine is incredibly simple and convenient.

  4. Imported Film Transport System and Sensor

    It utilizes an imported multi-axis film transport system and high-precision imported color mark sensor, ensuring accurate positioning and outstanding overall performance. The packaging result is not only precise but also visually appealing.

  5. Versatile Bag-Making Equipment

    The bag-making equipment can be easily replaced to accommodate specific customer and product requirements.

These are the pyramid tea bag packages with sachet

Technical Parameter

Model:CB-02-06NWSJB
Filling Range:1 – 10g
Packaging Speed:20-40bags/minute
Inner Bag Sizes:50-80mm
Outer Bag Sizes:140-180mm
Sealing Mether:Ultrasonic sealing technology
Machine Size:2677 x 1124 x 2099 mm
Machine Net Weight:800KG
Machine Power:220V,50/60HZ,2.2KW

Drip Coffee bag Packaging Machine With Inner and Outer envelope​

this is a drip coffee tea bag packing machine for ground coffee
CB-120G
this is a drip coffee tea bag packing machine for powders
CB-120P

Application

This type of packing machine is suitable for coffee powder and small granular materials. It utilizes a specific hanging ear filter and three-sided sealing technique, allowing it to be directly hung on the edge of a cup.

This not only enhances the brewing effect of coffee but also aligns with the current popular trend of bag-style packaging in foreign markets.

Furthermore, it can use various packaging materials, including composite film, nylon, corn fiber, and hanging ear coffee film.

Advantage of drip coffee Tea Bag Packing Machine

  1. Automatic completion of bag making, measuring, filling, sealing, cutting, and counting functions: These machines offer a fully automated production process, including bag making, measuring, filling, sealing, cutting, and counting, thereby increasing production efficiency and reducing labor costs.

  2. Minimum sealing temperature variation using PID temperature control, with a tolerance of ±2%: Utilizing a PID temperature control system ensures the stability of sealing temperatures and maintains tolerance within an extremely low range of ±2%, ensuring product consistency and quality.

  3. Special design for the sealing section with excellent sealing effectiveness: The sealing section is designed with a special crimping process to ensure outstanding sealing performance, preventing product leakage and contamination.

  4. Touchscreen operation with PLC control for bag length adjustment without gear replacement: The machine is easy to operate, allowing for bag length adjustment through a touchscreen interface without the need for cumbersome gear replacement, enhancing operational flexibility and efficiency.

  5. Cross-sealing at the end of inner and outer bags with lubrication holes for periodic lubrication to ensure smooth machine operation, and sufficient lubrication to reduce failure rates and extend machine lifespan.


drip coffee powder

Technical Parameter

Model:CB-120
Filling Range:5 – 10g
Packaging Speed:20-35bags/minute
Bag Sizes:L:70-74mm   W:90mm
Sealing Mether:Ultrasonic sealing technology
Machine Size:1720 x 900 x 2270 mm
Machine Net Weight:660KG
Machine Power:220V, 50/60HZ, 3.7KW

Coffee Pod Packaging Machine

Application

this is a round pot tea bag packing machine

This packaging machine is suitable for a wide range of industries, including food, chemical, and pharmaceutical, for the packaging of fine powdery materials. It can handle materials like soy milk powder, tea leaves, coffee powder, and spice powder.

The main operational process of this machine involves transferring tea leaves into the feeding hopper and then proceeding with bag production. The inner bags are constructed using materials such as corn fiber, filter paper, and coffee filter membranes. This machine is an excellent choice for customers with limited factory space and a need for high-speed packaging.

Advantage of Coffee Pod Packing Machine

  1. Automatic Bag Making, Measuring, Filling, Sealing, Cutting, and Counting: This machine seamlessly performs bag creation, precise measurement, filling, secure sealing, accurate cutting, and efficient counting, all automatically.

  2. Minimum Sealing Humidity Variance with PID Temperature Control: The machine utilizes PID temperature control technology to maintain a minimal deviation of just ±2% in sealing humidity, ensuring consistent and reliable sealing results.

  3. Special Roller Pattern Design for Effective Sealing: The sealing section of this machine is meticulously designed with a unique roller pattern, resulting in excellent sealing performance and airtight seals.

  4. Touchscreen Operation with PLC Control for Bag Length Adjustment: Operating the machine is user-friendly with its touchscreen interface, and thanks to PLC control, adjusting bag length is hassle-free, eliminating the need for gear replacements.

  5. Cross-Sealing Sections Equipped with Lubrication Holes: Both the inner and outer bag cross-sealing sections feature lubrication holes for periodic oiling, ensuring smooth machine operation, reducing the risk of malfunctions, and extending the machine’s lifespan.


these are the round tea bag packages

Technical Parameter

Model:CB-496T
Filling Range:4 – 8 g
Packaging Speed:10 – 15 bags/minute
Inner Bag Diameter φ:55 -62 mm
Outer Bag Sizes:L:100mm   W:85mm
Machine Size:780 x 2020 x 1850 mm
Machine Net Weight:1000KG
Machine Power:220V, 50/60HZ, 3.5KW

Tea Bag Packing Machine Without Sachet

Triangle Tea Bag Packaging Machine

these are the pyramid tea bag packing machine
SJB01-06
these are the pyramid tea bag packing machine front sides
SJB01-06

Application

This packaging machine is designed for a wide range of teas, including green tea, black tea, herbal tea, coffee, Chinese tea, health tea, traditional Chinese medicine tea, and granules, among others.

It can be used for packaging in various formats, such as flat bags and triangular pyramid bags.

The machine is fully automated and can handle tasks like feeding, measuring, bag creation, sealing, cutting, counting, and product conveyance. It is compatible with packaging materials like nylon, PET, non-woven fabric, and corn fiber.

Advantage of Triangle Tea Bag Packing Machine

  1. Automation: This tea bag machine offers automated production capabilities, enabling the completion of processes such as bag making, measuring, filling, sealing, cutting, and counting, thereby enhancing production efficiency.

  2. Precise Temperature Control: It employs PID temperature control technology, ensuring minimal temperature variations during sealing, with a tolerance of within 2%, guaranteeing consistent and reliable sealing quality.

  3. Excellent Sealing Performance: The sealing section is specially designed using roller embossing technology, ensuring a superior sealing effect.

  4. Optional adjustable Measurement Cup: The adjustable measuring cup can be easily fine-tuned during machine downtime, providing flexibility in the production process.


pyramid tea bag packages

Technical Parameter

Model: CB-SJB/SJB02-06
Filling Range:  1 – 7 g
Packaging Speed: 40 bags/minute
Bag Sizes: L: 60 – 80 mm; W: 40 – 80 mm
Machine Size: 1310 x 1470 x 2110 mm
Machine Net Weight: 450KG
Machine Power: 220V, 50/60HZ, 3KW

Filter Tea Bag Packaging Machine - Inner Bag only

this is a tea bag packing machine with string
CB-10
this is a tea bag packing machine with string and tag
CB-11

Application

This is an economical tea bag machine, suitable for fully automatic packaging of broken tea, medicinal tea, coffee, plants and other similar products.



It can automatically complete bag making, measuring, filling, sealing, cutting and counting functions. The packaging can be optionally with cotton rope or hang tag.

Advantage of Filter Tea Bag Packaging Machine

  1. Economically and environmentally friendly, using biodegradable packaging materials: The filter bag tea packaging machine is characterized by its eco-friendly approach, utilizing biodegradable packaging materials to reduce plastic pollution and align with sustainability principles.

  2. Versatile packaging suitable for a wide audience: The filter bag tea packaging machine accommodates various packaging types, making it suitable for a diverse range of products, including different types of tea, and appealing to a broad audience across different markets.

  3. PLC control for precise positioning: This machine employs PLC control technology, ensuring highly precise positioning capabilities to maintain consistent packaging quality and enhance production efficiency.

  4. Optional adjustable Measurement Cup: The adjustable measuring cup can be easily fine-tuned during machine downtime, providing flexibility in the production process.


These are the tea and tea bag packages

Technical Parameter

Model CB-10 CB-11
Filling Range 1 – 10g 1 – 10g
Packaging Speed 30-60bags/minute 30-60bags/minute
Bag Sizes L:50-80mm;W:45-80mm L:50-80mm;W:45-80mm
Machine Size 900 x 750 x 1750mm 1250 x 750 x 1750mm
Machine Net Weight 350KG 350KG
Machine Power 220V,50/60HZ,1.6KW 220V,50/60HZ,1.6KW

Round Pocket Tea Bag Packaging Machine

Application

This tea bag machine is suitable for tea, coffee, food, medical, chemical and other granular products.


this is a 66 type tea bag packing machine

Due to the compact design of the machine, if your factory space is limited and you are also looking for a round pocket tea bag machine, then this machine is your best choice choose.

Feature of Round Pocket Packing Machine

  1. Economically and environmentally friendly, using biodegradable packaging materials: The filter bag tea packaging machine is characterized by its eco-friendly approach, utilizing biodegradable packaging materials to reduce plastic pollution and align with sustainability principles.

  2. PLC control for precise positioning: This machine employs PLC control technology, ensuring highly precise positioning capabilities to maintain consistent packaging quality and enhance production efficiency.

  3. Adjustable Measurement Cup: The adjustable measuring cup can be easily fine-tuned during machine downtime, providing flexibility in the production process.

these are the round tea bag packages

Technical Parameter

Model:CB-66RT
Filling Range: 1 – 5 g
Packaging Speed:10 – 40 bags/minute
Bag Sizes:φ 70mm
Machine Size:1160 x 850 x 1740 mm
Machine Net Weight:400KG
Machine Power:220V, 50/60HZ, 1.6KW
