Understanding the Technology Behind Modern Food Packaging
As food manufacturers continue to pursue longer shelf life, 더 높은 생산 효율성, and premium product presentation, 그만큼 열성형 진공 포장기 has become one of the most popular packaging solutions in Europe, 북아메리카, and the Middle East.
Whether packaging fresh meat, sausages, 치즈, 훈제 제품, 해산물, 또는 날짜, thermoforming technology offers a highly automated and cost-effective solution for industrial food production.
이 기사에서, we will explain how a thermoforming vacuum packaging machine works, compare it with traditional vacuum packaging methods, and explore why more food processors are upgrading to thermoforming technology.
What Is a Thermoforming Vacuum Packaging Machine?
A thermoforming vacuum packaging machine is an automatic packaging system that forms packaging trays or pockets directly from roll film, fills products automatically, evacuates air from the package, and seals it continuously in one integrated production process.
Unlike chamber vacuum sealers that require pre-made bags, thermoforming machines create customized packages from flexible or rigid films during operation.
This technology is widely used for:
- Fresh beef, 돼지고기, 양고기, and poultry
- Sausages and smoked meats
- Cheese and dairy products
- Seafood and salmon
- 냉동식품
- 준비된 식사
- Middle Eastern dates and dried fruits
- Pet food products
열성형 진공 포장 기계는 어떻게 작동하나요??

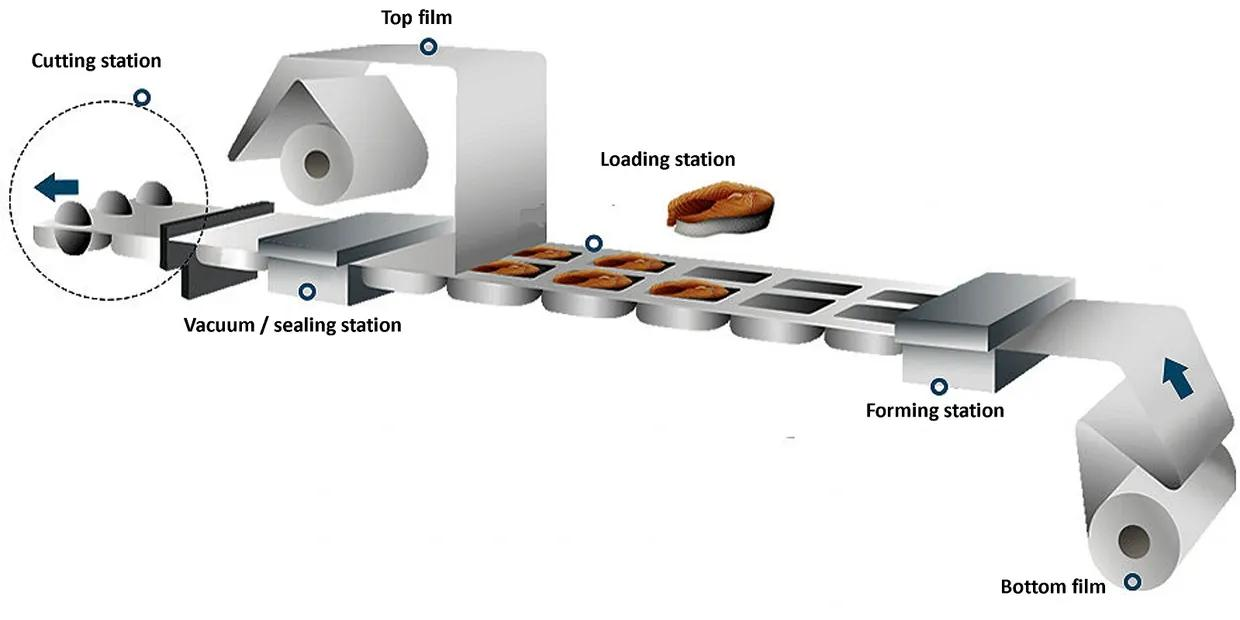

The operating process can be divided into six main stages:
1. Bottom Film Feeding
The machine automatically unwinds the bottom film from a roll and transports it into the forming station using servo-controlled film transport systems.
Compared with manual loading methods, automatic film feeding ensures stable positioning accuracy and higher production speeds.
2. Heating and Thermoforming
The bottom film enters the heating station where it becomes soft under controlled temperature conditions.
Vacuum pressure and compressed air are then used to shape the film into trays or cavities according to the mold design.
The depth, 모양, and dimensions can be customized to match different products such as steaks, sausages, 치즈 블록, 또는 날짜.
3. Product Loading
Products are placed into the formed cavities either manually or through automatic loading systems integrated with weighing machines, robots, or conveyor systems.
For large factories in Europe and North America, this step is often fully automated to reduce labor costs.
4. Vacuuming and Gas Flushing
The loaded packages move into the sealing chamber.
Air inside the package is removed by a high-performance vacuum pump. Depending on product requirements, the machine can also inject protective gases such as nitrogen or carbon dioxide using Modified Atmosphere Packaging (지도) 기술.
This process significantly slows oxidation and bacterial growth while preserving freshness, 색상, and texture.
5. 씰링
The upper film is applied and heat sealed to the bottom film under precise temperature and pressure control.
The result is an airtight package with excellent sealing integrity and attractive shelf appearance.
6. Cutting and Discharge
The finished packages are cut into individual units according to the selected mold layout and automatically discharged for labeling, boxing, and shipping.
The entire process is continuous, 효율적인, and highly automated.
Thermoforming Vacuum Packaging vs Traditional Chamber Vacuum Packaging
Many food manufacturers start with chamber vacuum sealers but later upgrade to thermoforming systems as production grows.Comparison ItemTraditional Vacuum PackagingThermoforming Vacuum PackagingPackaging MaterialPre-made vacuum bagsRoll filmsAutomation LevelLowHighLabor RequirementHighLowProduction CapacitySmall to mediumMedium to very highPackaging AppearanceStandard bag stylePremium customized designPackaging CostHigher bag costLower film costIntegration with Production LinesLimitedExcellentProduction EfficiencyModerateVery high
Lower Packaging Material Cost
Roll film is generally significantly less expensive than pre-made vacuum bags, helping manufacturers reduce packaging costs over the long term.
Higher Productivity
A thermoforming machine can package thousands of products per hour, making it ideal for industrial-scale operations.
Better Shelf Presentation
Customized package shapes improve product visibility and branding on supermarket shelves, which is particularly important in competitive European retail markets.
Reduced Labor Dependency
Automatic film feeding, 밀봉, and cutting reduce manual intervention and improve consistency.
Advantages of Thermoforming Vacuum Packaging for Food Manufacturers
유통기한 연장
Vacuum technology removes oxygen that contributes to spoilage and bacterial growth, extending product shelf life substantially.
Improved Product Protection
Products remain protected from moisture, 오염, and physical damage during transportation and storage.
Premium Product Appearance
Clear film and customized package design create an attractive retail-ready presentation that enhances consumer confidence.
Increased Production Efficiency
Continuous operation minimizes downtime and improves output compared with batch vacuum sealing systems.
지속 가능성의 이점
Modern thermoforming systems can use thinner films and optimize material usage, reducing overall plastic consumption.
What Makes Our Thermoforming Vacuum Packaging Machine Different?
Although many manufacturers offer thermoforming equipment, machine reliability and component quality vary greatly.
Our machines are specifically designed for export markets in Europe, 북아메리카, and the Middle East.
Full 304 Stainless Steel Construction
The entire machine frame is manufactured from food-grade 304 stainless steel for superior hygiene and corrosion resistance.
German Vacuum Technology
We use high-performance vacuum pumps to ensure stable vacuum levels and reliable sealing performance during long production runs.
Servo Driven Film Transport
Servo motors provide highly accurate film positioning, improving package consistency and reducing film waste.
Intelligent PLC Control System
Operators can easily save and recall multiple packaging recipes for different products, reducing setup time and improving production flexibility.
Multiple Safety Monitoring Functions
Automatic alarms and protection systems monitor vacuum pressure, 온도, film position, and machine status in real time.
Customized Mold Solutions
We provide customized molds for:
- 소시지
- Bacon
- 신선한 고기
- 치즈
- 해산물
- Salmon
- Dates
- 냉동식품
This allows customers to create packaging that perfectly matches their products and brand image.
Ready for Industry 4.0 Integration
Our machines can be connected with labeling systems, metal detectors, check weighers, printers, robotic loaders, and complete production lines.
Why European and North American Food Producers Prefer Thermoforming Technology
Labor costs continue to rise across Europe and North America.
동시에, retailers require longer shelf life, better package appearance, and higher production traceability.
Thermoforming vacuum packaging machines address all of these challenges by delivering:
- 운영 비용 절감
- 생산 효율성 향상
- Better product presentation
- 노동 요구 사항 감소
- Improved food safety standards
For companies seeking long-term growth and competitiveness, thermoforming technology is increasingly becoming the industry standard rather than a luxury investment.
최종 생각
A thermoforming vacuum packaging machine is much more than a vacuum sealer.
It is a fully automated packaging system that combines package forming, 진공 밀봉, gas flushing, 절단, and discharge into a single continuous production process.
Compared with traditional vacuum packaging equipment, thermoforming technology delivers lower packaging costs, higher efficiency, better product presentation, and greater scalability.
For meat processors, cheese manufacturers, seafood companies, and food brands targeting premium retail markets, investing in thermoforming packaging technology is an effective way to improve productivity and strengthen market competitiveness.
If you are looking for a reliable thermoforming vacuum packaging solution for your products, our engineering team can provide customized machine configurations tailored to your production requirements and packaging goals.
